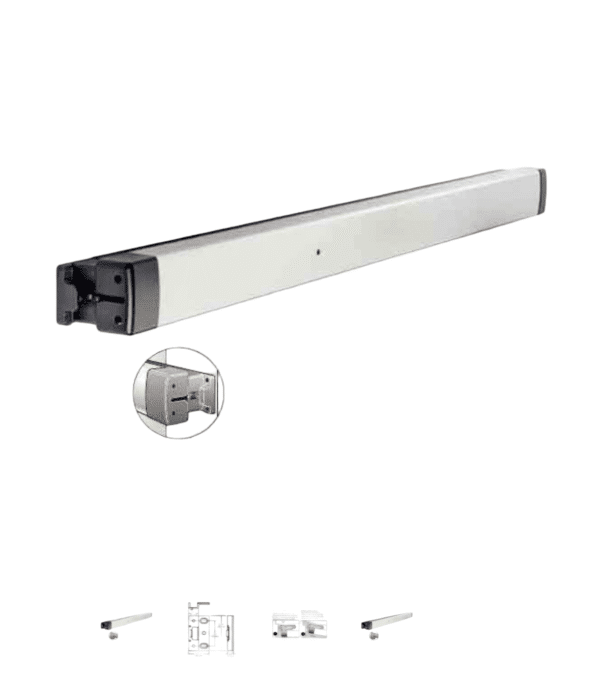

“ADR-8801-36 AdamsRite: Rim Exit Device, Narrow Stile Aluminum Doors, 36″”, Aluminum”
$45.38
$86.22
Description“The 8800 Series Narrow Stile Rim Exit Device is designed for narrow stile aluminum applications that require a life-safety exit device with Starwheel interlocking solution. Designed for use in applications with single doors or pairs of doors with a mullion.More Details Below Certifications UL 305 Panic Hardware ANSI/BHMA A156.3-2008 Grade 1 ANSI/BHMA A156.3-2014 Grade 2 Materials Push bar made of extruded aluminum, clad or anodized in a variety of finishes Handing Device is non-handed. Push bar Length Standard size: 36″” [914.4 mm] Standard width bars can be field cut to the next smallest opening width.Door Thickness Suits 1-3/4″” [44.5 mm] standard, up to 2-1/4″” [57.2 mm]. Stile Width Minimum 2″” [50.8 mm] stile. Fits narrow, medium, and wide stile aluminum doors Projection 2-5/8″” [66.7 mm] when fully projected, 1-5/8″” [41.3 mm] when dogged. Dogging Standard dogging with hex key or optional cylinder dogging. Fasteners Standard machine screws. Cylinders Fits any standard 1-5/32″” [29.4 mm] diameter rim cylinder Strike Standard strike and narrow versions for centering doors in 4″” jamb (both strikes included).”
