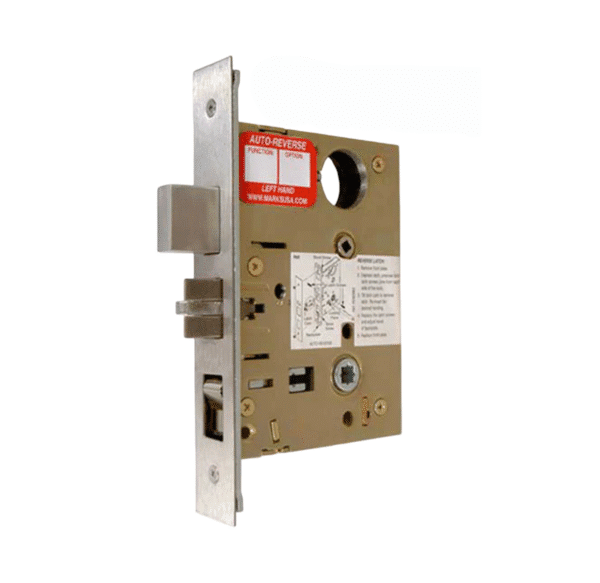

“Marks: Grade 1 Entrance Function Mortise Lock Body only Right Handed”

Description“Nova 5 Series Mortise Locksets represent years of development into world class BHMA Certified mortise locksets and carry the Marks Lifetime Mechanical Warranty. Whether your application is a single style single function lockset or an entire complex with multiples and varieties, the Nova Series has the form, fit and competitive price to complete your project.More Details Below Lock Function ANSI F08, F10 Entrance Description Keyed Single Cylinder, With Deadbolt Lock Front Adjustable bevel steel backplate 1-1/4” x 8” x 7/64” thick stainless steel. Cover plate 1/16” thick Deadbolt Stainless steel with hardened roll pins, 1” throw Latch Solid stainless steel with antifriction latch lever, 3/4” throw Auxiliary Deadlatch 1/2” throw Handing Right Handed – RH Hubs Steel, 9/32’’ on diamond, 5/16” on square with security separator. Independent exterior and interior lever support springs Lever Support Springs Lever support springs with 5/16” Hubs Hub Follower (to lock hub) steel 1/8” thick Hub Stop (to limit lever travel) steel 1/8” thick. Case Stamped steel 3/32” thick, zinc dichromate finish. Certifications ANSI/BHMA Meets or exceeds Series Grade 1 requirements UL Listed 3-hour fire rating ADA Meet Requirements of The Americans with Disabilities Act “
