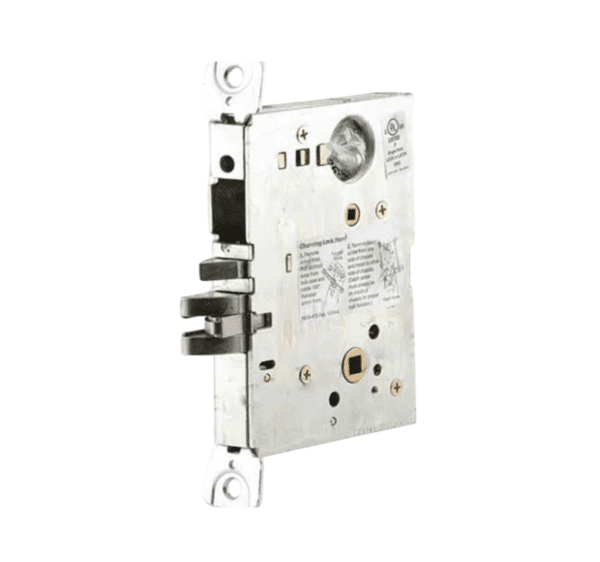

Description“The Schlage L Series has long been the benchmark for mortise locks. Beyond strength and security – it offers tremendous flexibility to allow it to meet the needs of almost every application.FeaturesGrade 1 UL Listed & Fire Rated up to 3 Hours Unsecured failures prevented by break-away spindle, also providing easy spindle replacement Universal lock case featuring ten functions in one case Lock Function 9080-Storeroom – Latchbolt retracted by key outside or by knob/lever inside. Outside knob/lever is always inoperative. Auxiliary latch deadlocks latchbolt when door is closed. Inside lever is always free for immediate egress.Handing Right Hand Door Thickness 1-3/4″” (44 mm) Cylinder No Cylinder – Lock Body Only Backset 2-3/4″” (70 mm) only Bolt 1″” (25 mm) throw stainless steel deadbolt Latch 3/4″” (19 mm) throw stainless steel latch with anti-friction tongue Material Stainless Steel / Zinc Case size 4-7/16″” x 3-5/8″” x 1″” (113 mm x 92 mm x 25 mm) Spacing Knob or lever to cylinder: 3 7/8″” (98 mm); knob or lever to thumbturn hub: 2 11/16″” (68 mm) Strike 1-1/8″” x 3-1/2″” (29 mm x 89 mm) with dust box Certifications ANSI/BHMI Certified A156.13-2012 Commercial Grade 1 Lock Body Mortises Inside the Edge of the Door UL Listed for 3 Hour Fire Door Manufacturer Warranty Limited lifetime mechanical warranty”
