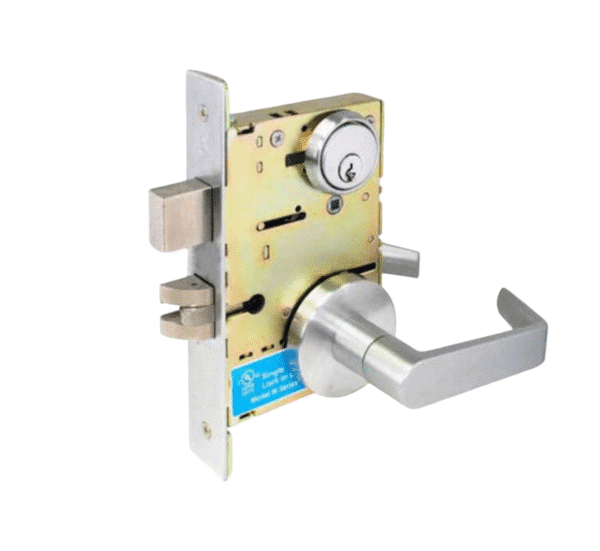

CRL-SC8465-US26D CAL-ROYAL: Mortise Lock, SS Sectional Trim, Closet/Storeroom function with deadbolt, Satin Chrome finish US26D

Description“Can retrofit Schlage L9000 Series mortise lock without drilling any additional holes on the door for sectional and escutcheon trims Fully reversible design No exposed mounting screws on the outside and inside trims The outside lever has a Clutch (Free-Wheeling design). The lever rotates when the lever is locked preventing excessive force from being applied to the horizontal lever. The design decreases the chance of the lever being broken or damaged Lock body conforms to all dimensional and operational performances of ANSI A156.13, Grade 1, exceeds 1,000,000 cycles Function: F07 – Storeroom Door Thickness: 1-3/4” (44.5mm) standard Handing: Field Reversible Backset: 2-3/4″” (70mm) Strike: Brass or stainless steal strike: ANSI Standard A115.1; curve lio with dust box Lock Case: Heavy Duty wrought steel, zinc dichromate plate Center to Center: Center of the lever to center of the cylinder is 3-7/8” (98mm) Faceplate: Brass or stainless steel; 8” x 1 7/32” (203mm x 31.3mm); ANSI Standard A115.1 Deadbolt: 1” (25.4mm) throw; hardened stainless steel Latch Bolt: 3/4” (19mm) throw; one-piece stainless steel with anti-friction reversible tongue Cylinder: 6-pin solid brass “C” keyway Trims: Sectional Trim, SS Lever Toggle Button: High rust-resistant chrome plated zinc alloy Auxiliary Latch: Stainless Steel, non-handed Finishes: 26D Satin Chrome Fire Rated: 3-hour fire door Certifications: ANSI / BHMA A156.13 Grade 1. Meets ADA, UL/cUL Listed”
